SSV2810GNB
| Model No | SSG2810 | * * * | SSV2810GNB | ||
| Image Format Cover | 1/3" ～ 1/4" | ||||
| 焦點距離 | 2.8 ～ 10 mm | ||||
| MAX光圈比率 | 1 : 1.4-2.4 | ||||
| Zoom Ratio 變焦倍數 | 3.5倍 | ||||
| Iris光圈 | Control Method | 手動 | 視頻驅動 | 直流驅動 | |
| Iris Range | F1.4(2.4) ～ Close | * * * | F1.4(2.4) ～ Close | ||
| 速度 | * * * | * * * | * * * | ||
| Input Voltage & Current | * * * | * * * | * * * | ||
| Sensitivity Adjustment | * * * | * * * | * * * | ||
| Focus 焦點 | 控制方式 | 手調 | |||
| Zoom 變焦 | 控制方式 | 手調 | |||
| 視角 (D×H×V) |
1/4 inch | Wide | 87.9° × 70.6° × 52.9° | ||
| Tele | 26.5° × 21.2° × 15.9° | ||||
| 1/3 inch | Wide | 115.8° × 93.7° × 70.6° | |||
| Tele | 35.3° × 28.3° × 21.2° | ||||
| 1/2 inch | * * * | ||||
| 1 inch | * * * | ||||
| Minimum Object DistanceMIN可視距離 | 0.2 m | ||||
| Back Focal Length 后焦長度 | 7.79 ～ 16.95 mm | ||||
| Effective Diameter | Front 前部 | φ20.5 mm | |||
| Rear 后部 | φ8.8 mm | ||||
| Filter Screw size | * * * | ||||
| Mount | CS / 12.5mm | ||||

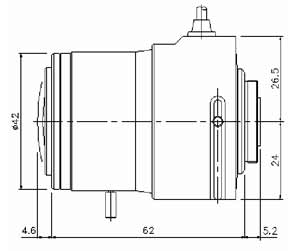

| Mechanical Dimension(D×L)機械尺寸 | φ34.5mm × 57.2mm | φ40mm × 46mm × 57.2mm | |||
| Weight重量 | 55 g | 80.5g | 65g | ||
| 應用溫度環境 | -10°C ～ +50°C (+14°F ～ +122°F) | ||||
