| 首頁 > 監控器材 > AVENIR >變焦距鏡頭 >SSV2510 /SSV2510G/SSV2510GNB |
| Model No | SSG2510 | SSV2510G | SSV2510GNB | ||
| Image Format Cover | 1/3" ～ 1/4" | ||||
| 焦點距離 | 2.5 ～ 10 mm | ||||
| MAX光圈比率 | 1 : 1.4 | ||||
| Zoom Ratio 變焦倍數 | 4.0倍 | ||||
| Iris光圈 | Control Method | 手動 | 視頻驅動 | 直流驅動 | |
| Iris Range | F1.4 ～ Close | F1.4 ～ 360 | |||
| 速度 | * * * | Approx. 1.5 sec | * * * | ||
| Input Voltage & Current | * * * | DC 8 ～ 16V Max. 30mA | * * * | ||
| Sensitivity Adjustment | * * * | 0.5 ～ 1.0VP-P | * * * | ||
| Focus 焦點 | 控制方式 | 手調 | |||
| Zoom 變焦 | 控制方式 | 手調 | |||
| 視角 (D×H×V) |
1/4 inch | Wide | 99.2° × 79.5° × 59.6° | ||
| Tele | 26.6° × 21.3° × 16.0° | ||||
| 1/3 inch | Wide | 130.9° × 105.8° × 79.5° | |||
| Tele | 35.3° × 28.3° × 21.3° | ||||
| 1/2 inch | * * * | ||||
| 1 inch | * * * | ||||
| Minimum Object DistanceMIN可視距離 | 0.3 m | ||||
| Back Focal Length 后焦長度 | 9.52 ～ 21.05 mm | ||||
| Effective Diameter | Front 前部 | φ26.9 mm | |||
| Rear 后部 | φ8.3 mm | ||||
| Filter Screw size | * * * | ||||
| Mount | CS / 12.5mm | ||||

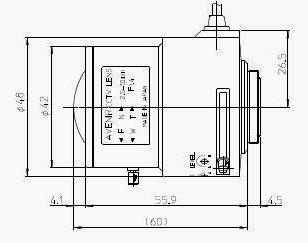

| Mechanical Dimension(D×L)機械尺寸 | φ48mm × 60mm | φ48mm × 50.5mm × 60mm | |||
| Weight重量 | 80.8g | 80.5g | 78.8g | ||
| 應用溫度環境 | -10°C ～ +50°C (+14°F ～ +122°F) | ||||
