| 首頁 > 監控器材 > AVENIR > 變焦點自動光圈鏡頭 >SSV0308GNB |
|
| Model No | SSV0308GNB 日本新產品 | ||
| Image Format Cover | 1/3" ～ 1/4" | ||
| 焦點距離 | 3.0 ～ 8.0 mm | ||
| Zoom Ratio 倍數 | 2.0 倍 | ||
| MAX光圈比率 | 1 : F1.0 | ||
| Iris光圈 | 操作 | 直流驅動自動光圈 | |
| Iris Range | F1.0 ～F 360 | ||
| 速度 | * * * | ||
| 輸入電壓 | DC 8 ～ 16V Max. 30mA | ||
| 靈敏度調整 | * * * | ||
| Focus 焦點 | 手調 | ||
| ZOOM 變焦 | 手調 | ||
| Angle Field of View (D×H×V) |
1/4 inch | Wide | 96.0° ×70.0° |
| Tele | 34.0° ×26.0° | ||
| 1/3 inch | Wide | 70.0° ×52.0° | |
| Tele | 26.0° ×19.0° | ||
| 2/3 inch | Wide | * * * | |
| Tele | * * * | ||
| 1 inch | Wide | * * * | |
| Tele | * * * | ||
| Minimum Object Distance | 0.3 m | ||
| Back Focal Length | 7.83 ～ 13.90 mm | ||
| Effective Diameter | Front | φ20.4 mm | |
| Rear | φ10.8 mm | ||
| Filter Screw size | * * * | ||
| Mount / Flange Back | CS | ||

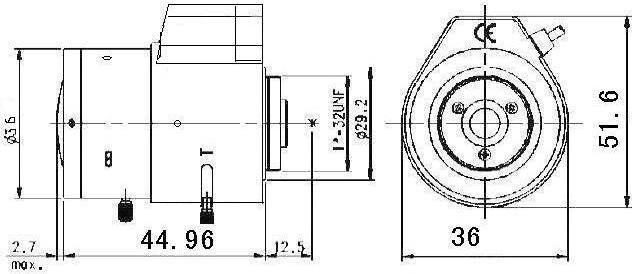

| Mechanical Dimension (W×H×L) | |||
| Weight | 55g | ||
| Application Temperature Range | -10°C ～ +50°C (+14°F ～ +122°F) | ||
